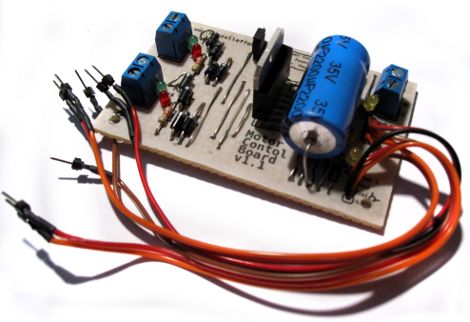

Motor Control Board =========================================

This board is for two DC motors (5-40V) in combination with an Arduino. You can control each speed with one PWM and each direction with 2 digital ports.
- Forward:...ON - OFF
- Stop:......OFF - OFF
- Backward:..OFF - ON
Two control LEDs indicates the PWM. And the other four indicates the direction of the motors.

Downloads ===================================================

Parts =======================================================

- 1 H-Brigh Driver L298 N
- 6 standard LEDs
- 1 elkos 2200µF
- 2 capacitors 100nF
- 8 diodes 1N4007
- resistors: 2x 2,2kOhm, 2x 220Ohm
- Jumper

Program =====================================================

Midi_to_4xMotorController_v02
